Model Whirlpool 2142^1E ELECTRIC MODULAR COUNTER UNIT – Common Parts & Diagrams
04 - GRIDDLE, GRIDDLE/GRILL COVER MODU
05 - ELECTRIC GRILL MODULE, ELECTRIC
06 - WIRING DIAGRAM

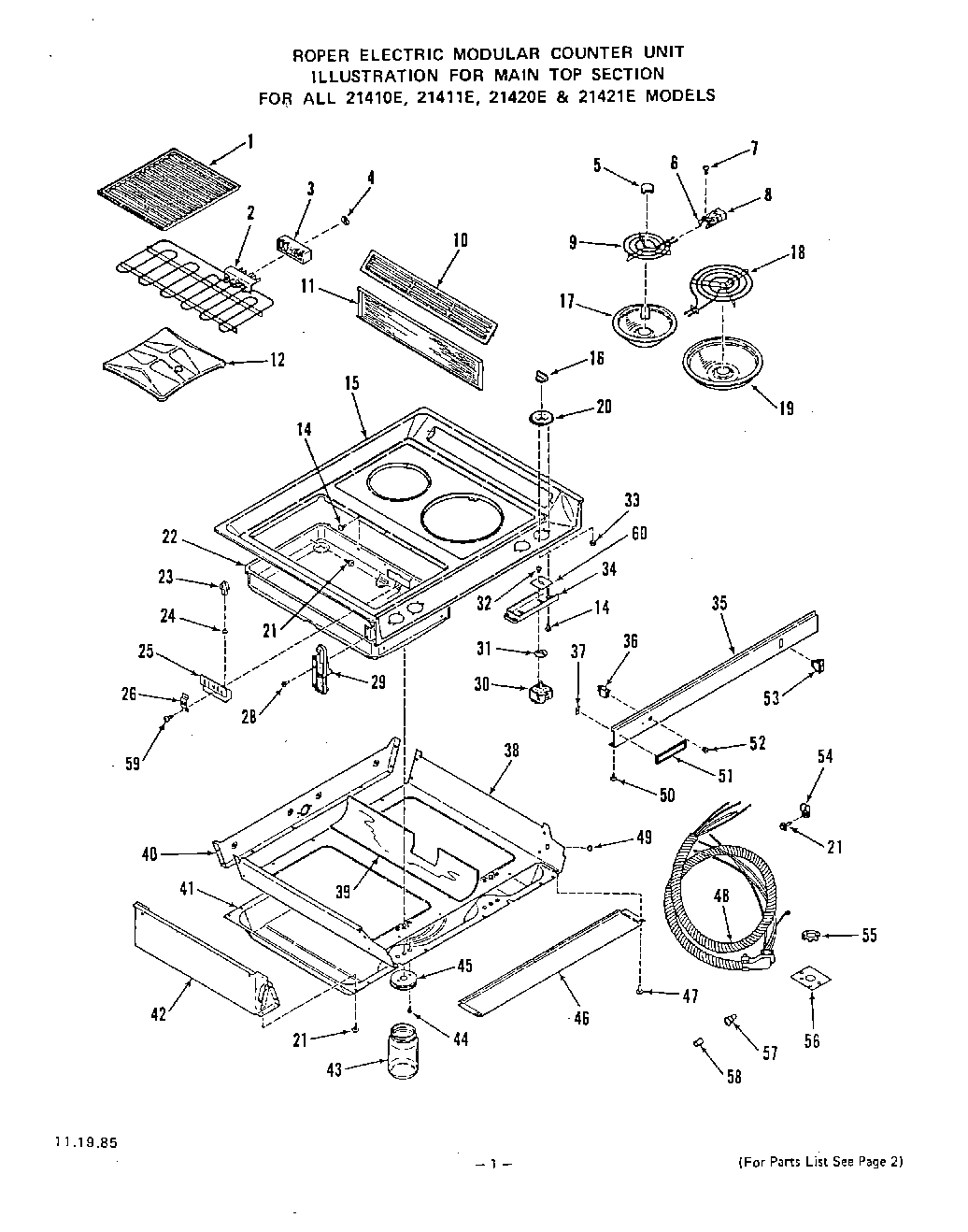

02 - MAIN TOP

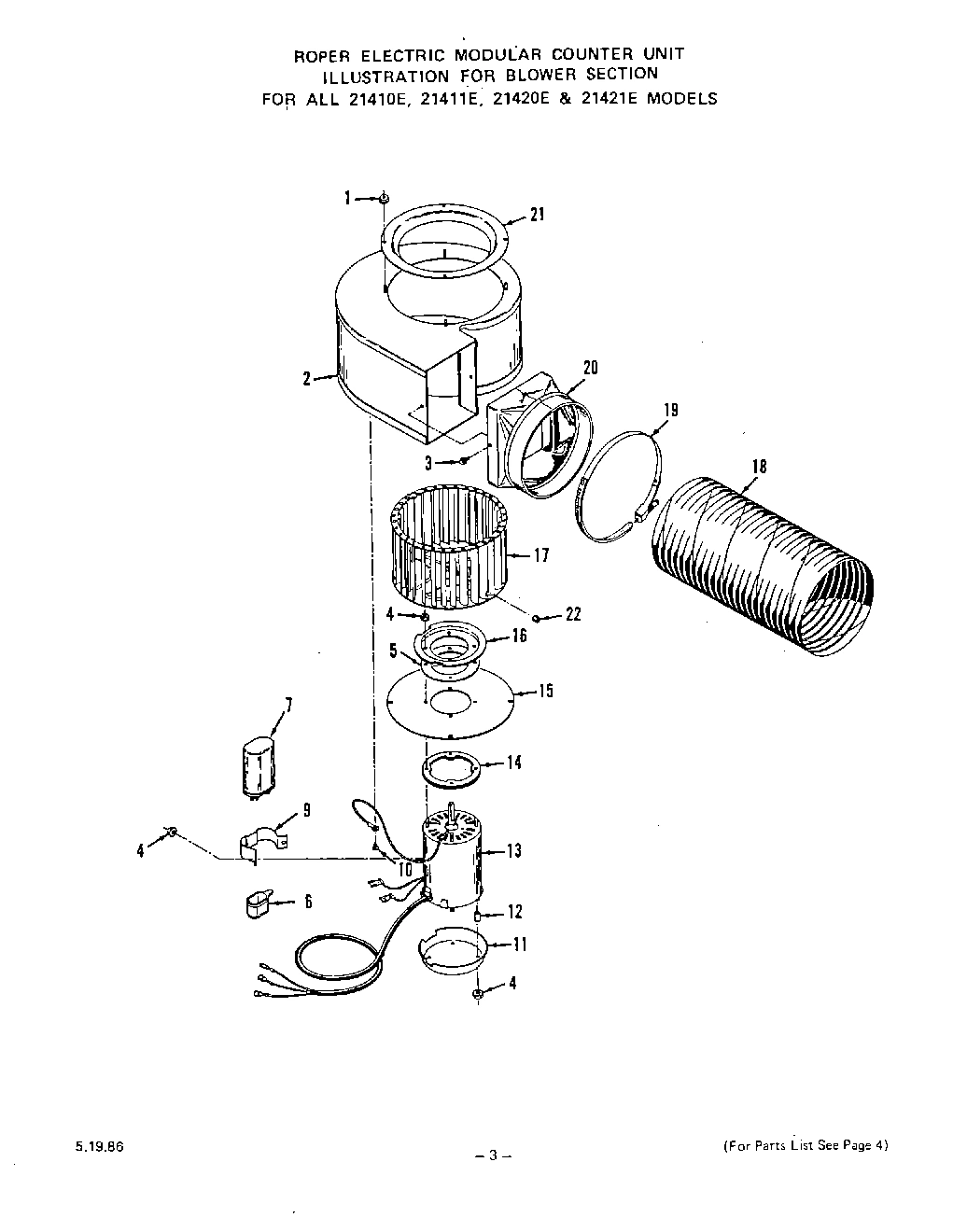

03 - BLOWER
Common parts from model Whirlpool 2142^1E ELECTRIC MODULAR COUNTER UNIT
xWire Harness WPL ARI9478A24 Contact Us For Availability
1
Cover WPL 329281 Contact Us For Availability
1
Griddle WPL 330928 Contact Us For Availability
1
Grate-Grill (2 Req) WPL 331897 Contact Us For Availability
1
Lock Nut WPL 330275 Contact Us For Availability
2
Handle-Rt. or Lt. WPL 329282 Contact Us For Availability
2
Mounting Nut (2 Req) WPL 329326 Contact Us For Availability
2
Element-Grill WPL 329023 Contact Us For Availability
2
Housing WPL 329644 Contact Us For Availability
3
Screw 6ABx1/4`` WPL 330244 Contact Us For Availability
3
Terminal Block-Grill Element WPL 330310 Contact Us For Availability
3
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
4
Clip-Push On WPL 330332 Contact Us For Availability
4
Element-Grill WPL ARI9479A55 Contact Us For Availability
4
Keps Nut 8-32 WPL 239764 Contact Us For Availability
5
Medallion (2 Req) All 2141 Models WPL 318586 Contact Us For Availability
5
Main Top WPL 329211 Contact Us For Availability
5
Gasket-Motor Seal WPL 330347 Contact Us For Availability
6
Terminal Pin (4 Req) WPL 310709 Contact Us For Availability
6
Pan-Module WPL 329110 Contact Us For Availability
6
Bracket-Term.Block (2 Req) All 2141 Mod. WPL 318872 Contact Us For Availability
6
Cap-Capacitor WPL 330260 Contact Us For Availability
7
Terminal Block WPL 329024 Contact Us For Availability
7
Screw 7-32x5/16`` All 2141 Models WPL 299632 Contact Us For Availability
7
Capacitor WPL 329649 Contact Us For Availability
8
Speed Nut WPL 69831 Contact Us For Availability
8
Terminal Block w/Wire Leads 2141 Models WPL 318960 Contact Us For Availability
9
6`` Surface Element (240-208 Vt) 2141 Mod. WPL 325510 Contact Us For Availability
9
Pan-Module WPL 329237 Contact Us For Availability
9
Bracket-Capacitor WPL 330261 Contact Us For Availability
10
Screw 8-32x3/8`` WPL 232183 Contact Us For Availability
10
Air Intake-Grill (Rt. or Lt.) WPL 329021 Contact Us For Availability
10
Screw 8ABx1/4`` WPL 233583 Contact Us For Availability
11
Strap-Hob Element WPL 329240 Contact Us For Availability
11
Air Filter (Rt. or Lt.) WPL 329033 Contact Us For Availability
11
Shield-Motor WPL 329659 Contact Us For Availability
12
Insulator WPL 310705 Contact Us For Availability
12
Clamp-Hob Element (Large) WPL 329108 Contact Us For Availability
12
Reflector-Grill Support (2 Req) WPL 329022 Contact Us For Availability
12
Spacer WPL 325308 Contact Us For Availability
13
Bracket-Terminal Block WPL 329112 Contact Us For Availability
13
Main Top WPL 329105 Contact Us For Availability
13
Motor WPL 329646 Contact Us For Availability
14
Element-Hob (Large) WPL 329107 Contact Us For Availability
14
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
14
Rubber Motor Mount WPL 329648 Contact Us For Availability
15
Element-Hob (Small) WPL 329106 Contact Us For Availability
15
White 2141W WPL 328759 Contact Us For Availability
15
Almond 2141L WPL 328760 Contact Us For Availability
15
Platinum 2141P WPL 328761 Contact Us For Availability
15
Toast 2141T WPL 328762 Contact Us For Availability
15
White 2142W WPL 328767 Contact Us For Availability
15
Almond 2142L WPL 328768 Contact Us For Availability
15
Platinum 2142P WPL 328769 Contact Us For Availability
15
Toast 2142T WPL 328770 Contact Us For Availability
15
Black 2142B WPL 329040 Contact Us For Availability
15
Black 2141B WPL 329044 Contact Us For Availability
15
Chrome 2142X WPL 337652 Contact Us For Availability
15
Main Top WPL ARI9466A19 Contact Us For Availability
15
Plate-Motor Mount WPL 329647 Contact Us For Availability
16
Knob-Infinite Control (4 Req) WPL 329020 Contact Us For Availability
16
Seal-Motor WPL 330346 Contact Us For Availability
17
6`` Burner Bowl All 2141 Models WPL 296481 Contact Us For Availability
17
Impellor WPL 329645 Contact Us For Availability
18
8`` Surface Element (240-208 Vt) 2141 Mod WPL 325506 Contact Us For Availability
18
Flexible Hose WPL 329031 Contact Us For Availability
19
8`` Burner Bowl All 2141 Models WPL 304969 Contact Us For Availability
19
Clamp-Hose WPL 329032 Contact Us For Availability
20
Lt. Rear All 21410E & 21420E Mod. WPL 329548 Contact Us For Availability
20
Rt. Rear All 21410E & 21420E Mod. WPL 329549 Contact Us For Availability
20
Lt. Front All 21410E & 21420E Mod. WPL 329550 Contact Us For Availability
20
Rt. Front All 21410E & 21420E Mod. WPL 329551 Contact Us For Availability
20
Lt. Rear All 21411E & 21421E Mod. WPL 331540 Contact Us For Availability
20
Rt. Rear All 21411E & 21421E Mod. WPL 331541 Contact Us For Availability
20
Lt. Front All 21411E & 21421E Mod. WPL 331542 Contact Us For Availability
20
Rt. Front All 21411E & 21421E Mod. WPL 331543 Contact Us For Availability
20
Cup-Knob WPL ARI9467A69 Contact Us For Availability
20
Discharge-Blower WPL 329030 Contact Us For Availability
21
Inlet Ring WPL 329643 Contact Us For Availability
22
Right All 21420E Models WPL 329003 Contact Us For Availability
22
Left All 21410E & 21420E M WPL 329006 Contact Us For Availability
22
WPL 330254 WPL 330254 Contact Us For Availability
22
WPL 331926 WPL 331926 Contact Us For Availability
22
WPL 331927 WPL 331927 Contact Us For Availability
22
WPL 331928 WPL 331928 Contact Us For Availability
22
WPL ARI9468A56 WPL ARI9468A56 Contact Us For Availability
22
All 21420E Models WPL 330116 Contact Us For Availability
22
All 21410E Models WPL 330187 Contact Us For Availability
22
Set Screw 24-5/16``x3/8`` WPL 330263 Contact Us For Availability
23
WPL 310692 WPL 310692 Contact Us For Availability
23
WPL ARI9469A56 WPL ARI9469A56 Contact Us For Availability
24
WPL 71310 WPL 71310 Contact Us For Availability
24
WPL ARI9470A89 WPL ARI9470A89 Contact Us For Availability
25
WPL 329007 WPL 329007 Contact Us For Availability
25
WPL ARI9471A69 WPL ARI9471A69 Contact Us For Availability
26
WPL 310693 WPL 310693 Contact Us For Availability
26
WPL ARI9472A91 WPL ARI9472A91 Contact Us For Availability
28
WPL 316849 WPL 316849 Contact Us For Availability
29
WPL 328783 WPL 328783 Contact Us For Availability
29
WPL 328784 WPL 328784 Contact Us For Availability
29
WPL ARI9473A31 WPL ARI9473A31 Contact Us For Availability
30
WPL 320944 WPL 320944 Contact Us For Availability
31
WPL 280157 WPL 280157 Contact Us For Availability
32
WPL 78565 WPL 78565 Contact Us For Availability
33
WPL 78593 WPL 78593 Contact Us For Availability
34
WPL 331875 WPL 331875 Contact Us For Availability
35
WPL 329015 WPL 329015 Contact Us For Availability
36
WPL 327326 WPL 327326 Contact Us For Availability
37
WPL 24710 WPL 24710 Contact Us For Availability
38
WPL 328999 WPL 328999 Contact Us For Availability
39
WPL 330186 WPL 330186 Contact Us For Availability
39
WPL ARI9474A80 WPL ARI9474A80 Contact Us For Availability
40
WPL 329000 WPL 329000 Contact Us For Availability
41
WPL 329250 WPL 329250 Contact Us For Availability
42
WPL 329013 WPL 329013 Contact Us For Availability
43
WPL 329034 WPL 329034 Contact Us For Availability
43
WPL ARI9475A38 WPL ARI9475A38 Contact Us For Availability
44
WPL 105771 WPL 105771 Contact Us For Availability
44
WPL ARI9476A22 WPL ARI9476A22 Contact Us For Availability
45
WPL 329010 WPL 329010 Contact Us For Availability
45
WPL ARI9477A47 WPL ARI9477A47 Contact Us For Availability
46
WPL 329019 WPL 329019 Contact Us For Availability
48
WPL 329452 WPL 329452 Contact Us For Availability
49
WPL 232365 WPL 232365 Contact Us For Availability
50
WPL 329382 WPL 329382 Contact Us For Availability
51
WPL 329016 WPL 329016 Contact Us For Availability
52
WPL 329465 WPL 329465 Contact Us For Availability
53
WPL 330117 WPL 330117 Contact Us For Availability
54
WPL 109266 WPL 109266 Contact Us For Availability
55
WPL 110340 WPL 110340 Contact Us For Availability
56
WPL 294983 WPL 294983 Contact Us For Availability
57
WPL 112062 WPL 112062 Contact Us For Availability
58
WPL 112061 WPL 112061 Contact Us For Availability
59
WPL 282634 WPL 282634 Contact Us For Availability
60
WPL 330289 WPL 330289 Contact Us For Availability
× ![]()
